TVS Apache RTR 200 4V Race Edition 2.0 Features and Full Specification

The Apache RTR 200 4V Race Edition 2.0 is the first motorcycle in its class to be equipped with an advanced A-RT Slipper Clutch, a race-derived technology to complement the racing DNA of RTR 200 4V Engine. The motorcycle sports all-new dynamic racing-inspired graphics based on an aero-form theme along with a stylish and exclusively designed fly-screen for an aggressive racing stance. It is also available in ABS and FI variant.

The FI variant pushes track performance to the limit with Twin Spray Fuel-Injection technology developed in conjunction with BOSCH – Germany. The ABS variant with Dual-Channel ABS and RLP (Rear wheel Lift-off Protection) control offers quick detection and recovery of the wheel lock achieving superior braking performance and optimal cornering control.

TVS Apache RTR 200 4V Race Edition 2.0 Main FEATURES

Performance

  • A-RT (ANTI-REVERSE TORQUE) SLIPPER CLUTCH
  • RACE DERIVED O3C TECH
  • ELECTRONIC FUEL INJECTION SYSTEM
  • RACING ORIGIN SPLIT CRADLE CHASSIS
  • RACE TUNED KYB SUSPENSION
  • RACING TYRES
  • RACING DOUBLE – BARREL EXHAUST

Style

  • RACE-INSPIRED GRAPHICS
  • AGGRESSIVE HEADLAMP
  • FULLY DIGITAL INTERACTIVE SPEEDOMETER
  • AGGRESSIVE TANK COWL
  • FOAM-IN-PLACE SPLIT SEAT
  • ALLOY WHEELS
  • ENGINE COWL

Safety

  • ROTO PETAL DISC BRAKE

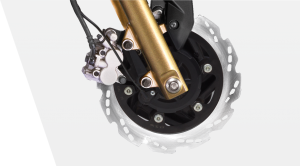

  • DUAL-CHANNEL ABS*

TVS Apache RTR 200 4V Race Edition 2.0 Full Specification

Overview

Mileage 40.2 kmpl
Front Brake Disc
Rear Brake Disc
Wheel Type Alloy
Starting Kick and Self Start
Fuel Capacity 12 L
Engine Type Single Cylinder, 4-Stroke, SI Engine
Displacement 197.75 cc
Maximum Speed 112.58 kmph
Gear Box 5 Speed
Fuel Type Petrol

Engine and Transmission

Engine Type Single Cylinder, 4-Stroke, SI Engine
Displacement 197.75 cc
Mileage 40.2 kmpl
Maximum Power 20.05 PS @ 8500 rpm
Maximum Torque 18.1 Nm @ 7000 rpm
Starting Kick and Self Start
Maximum Speed 112.58 kmph
Cooling System Oil Cooled
Gear Box 5 Speed
Clutch A-RT (Anti-Reverse Torque) Slipper Clutch
No. of Cylinders 1
Drive Type Chain Drive
Valves (per cylinder) 4
Bore 66 mm
Stroke 57.8 mm
Supply System Carburetor
Transmission Type Manual

Tyres and Brakes

Tyre Size

Front :-90/90-17

Rear :-130/70-17

Tyre Type Tubeless
Radial Tyres Yes
Wheel Size

Front :-17 inch

Rear :-17 inch

Front Brake Disc
Rear Brake Disc
Front Brake Diameter 270 mm
Rear Brake Diameter 240 mm

Features and Safety

Speedometer Digital
Tachometer Digital
Odometer Digital
Tripmeter Digital
ABS No
CBS No
EBS No
Seat Type Split
Console Digital
Clock Yes
Step-up Seat Yes
Passenger Footrest Yes
Traction Control No
Cruise Control No
Navigation No
Quick Shifter No
Launch Control No
Power Modes No
Adjustable Windscreen No
Mobile Connectivity No

Chassis and Suspension

Chassis/Frame Double Cradle Split Synchro STIFF
Front Suspension Telescopic Forks
Rear Suspension Mono Tube – Monoshock

Dimensions

Length 2050 mm
Height 1105 mm
Width 790 mm
Ground Clearance 180 mm
Saddle Height 800 mm
Kerb Weight 149 kg
Wheelbase 1353 mm
Fuel Capacity 12 L

Electricals

Head Lamp Halogen with LED Position Lamp
Tail Lamp LED
Turn Signal Lamp LED
Pass Switch Yes
Battery Capacity 12V, 9Ah
Pilot Lamps LED Pilot Lamps
LED Tail Light Yes
